Soundscape Tutorial No.1: Playing randomly localized sounds

If you want to implement a sense of localization for environmental sounds such as insects and birds, you can do so by placing randomly played sounds all over the map.
The Soundscape plugin allows you to generate random sounds around the player, creating an environment with a sense of localization.
This page introduces how to randomly play bird sounds centered on the player when the player enters a specific TriggerVolume.

Install CRIWARE Soundscape Plugin

When using the CRIWARE Soundscape Plugin, it must be installed in your project.
Open the Plugin window from Edit -> Plugin.

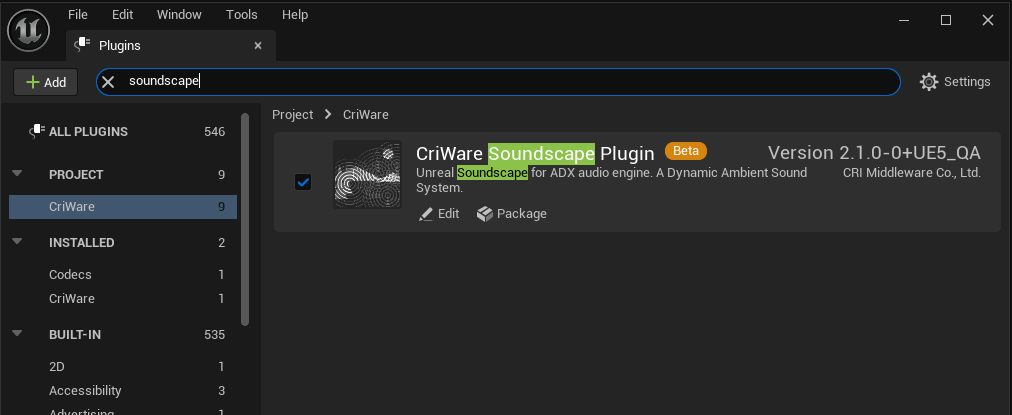

Select the CriWare category and enter "soundscape" in the search at the top of the window. "CriWare Soundscape Plugin" will be View, so check it.

The plugin will be applied by restarting the UE editor, so restart it.

Create Data Table asset

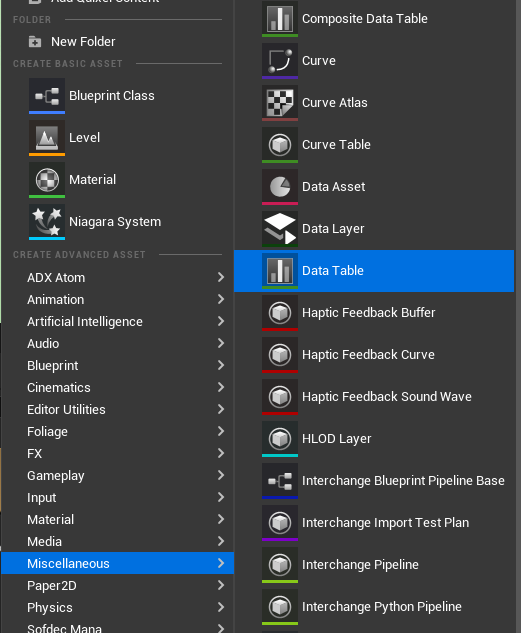

Right-click in the content browser and create a Data Table asset from Miscellaneous -> Data Table.

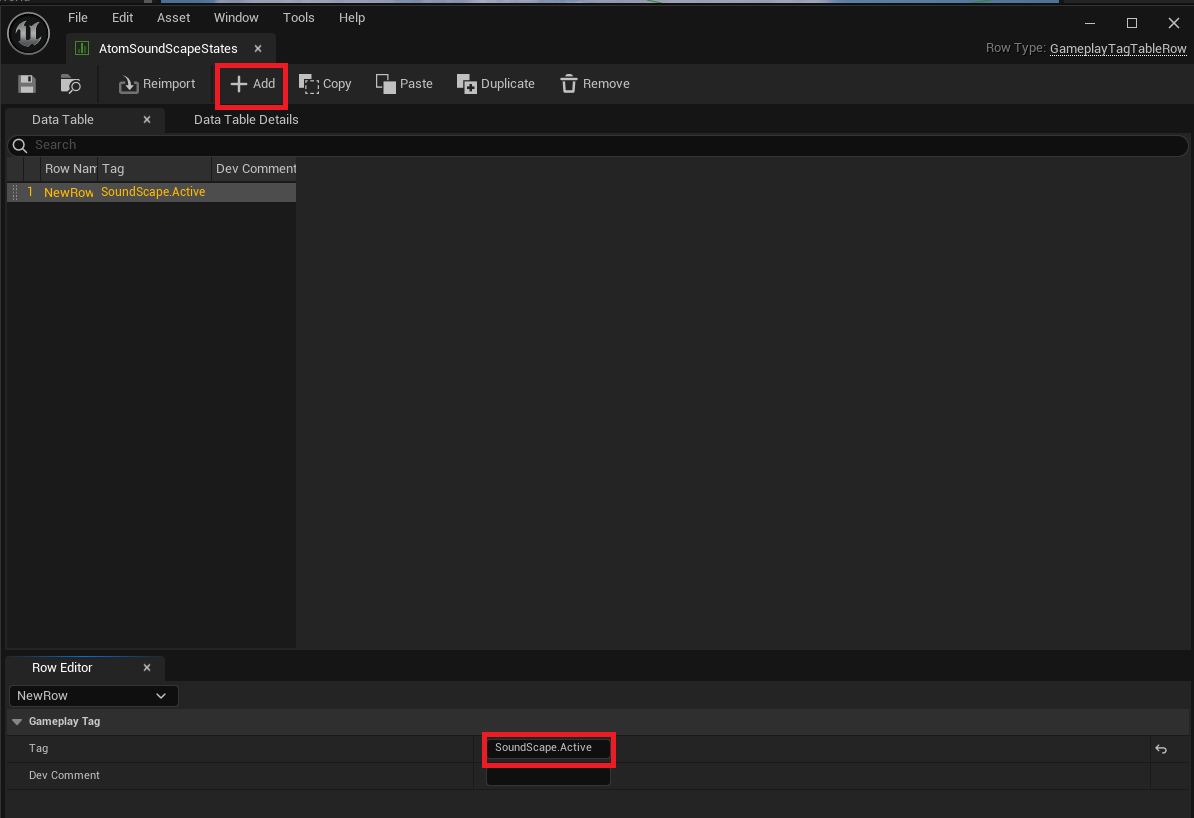

Once you open the Data Table asset, press the "Add"button at the top of the window to Add a Gameplay Tag, and enter "SoundScape.Active" as the tag name.

Add Data Table asset to ProjectSettings

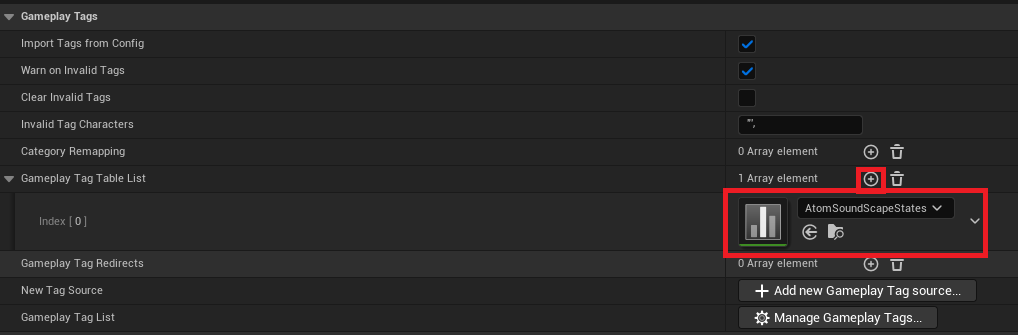

Open Project Settings's Project -> GameplayTags.
Add an element using the + button of GameplayTagTableList and set the Data Table asset you created earlier.

When you press the "ManageGameplayTags" button in the GameplayTagList field, GameplayTagManagaer will open and the SoundScape.Active state will be View.

Create Soundscape Palette asset

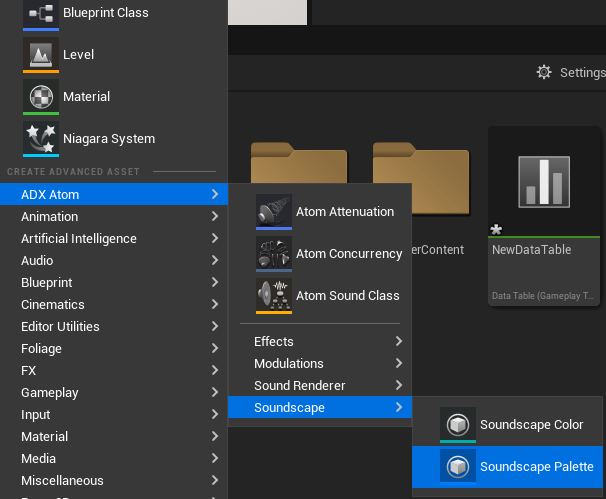

Right-click the content browser and create a Soundscape Palette asset from ADX Atom->Soundscape->Soundscape Palette.

Add Soundscape Palette asset to ProjectSettings

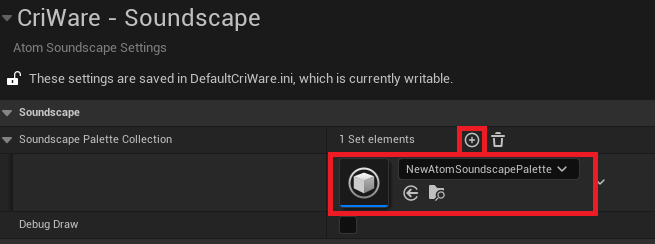

Open CriWare -> Soundscape in Project Settings.
Add an element using the + button in Soundscape -> SoundscapePaletteCollection and Add the SoundscapePalette asset you created earlier.

Create Soundscape Color asset

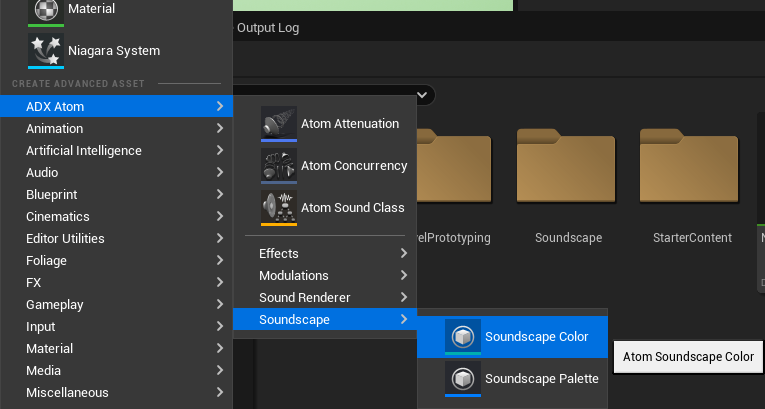

Right-click the content browser and create a Soundscape Color asset from ADX Atom->Soundscape->Soundscape Color.

Soundscape Palette/Soundscape Color asset setup

SoundscapePalette asset setup

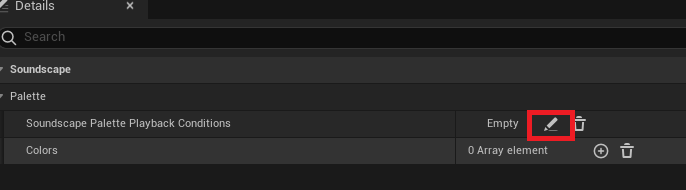

Open the SoundscapePalette asset details.

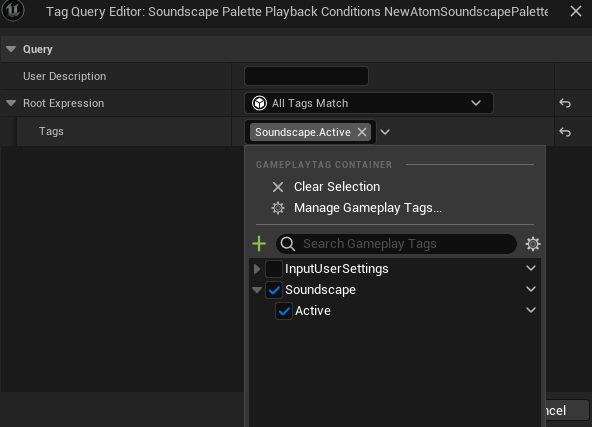

Press the Edit button in Palette -> SoundscapePalettePlaybackConditions to open the TagQueryEditor window.

Set RootExpression to "AllTagMatch" and Tags to SoundScape.Active.

SoundscapeColor asset setup

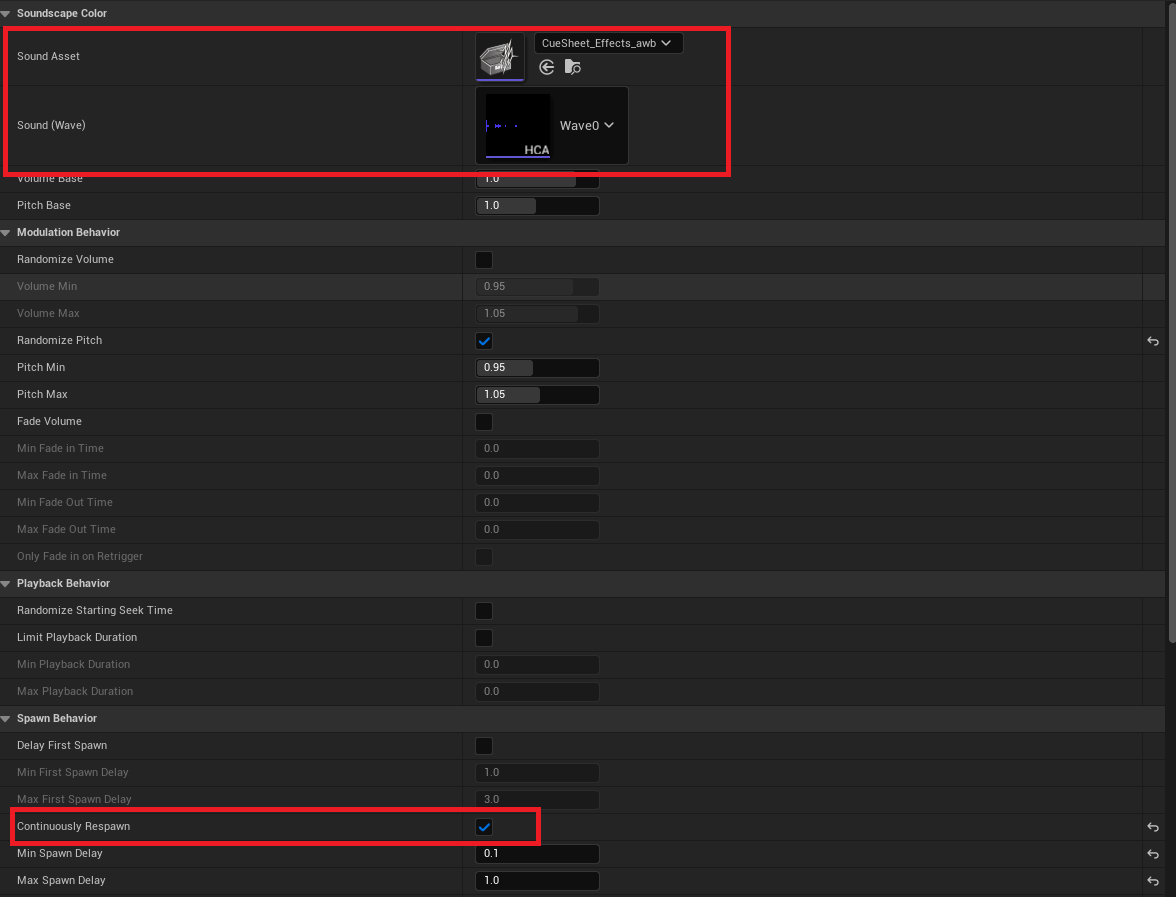

Open the SoundscapeColor asset details.
Set SoundscapeColor -> SoundAsset/Sound(Wave).
Also enable ContinuouslyRespawn.
Enabling this will cause the sound to spawn repeatedly.


Place Trigger Volume

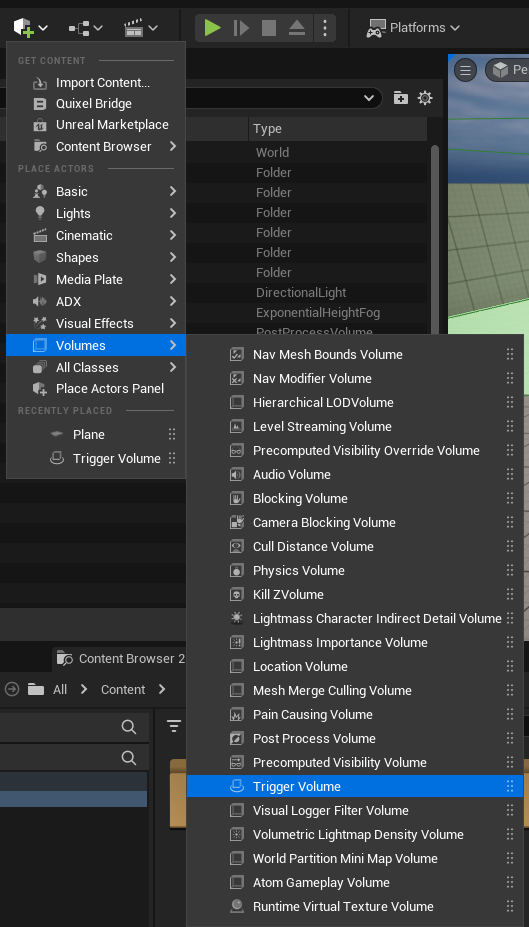

Select Volumes -> TriggerVolume from the top of the window and place it in your level.

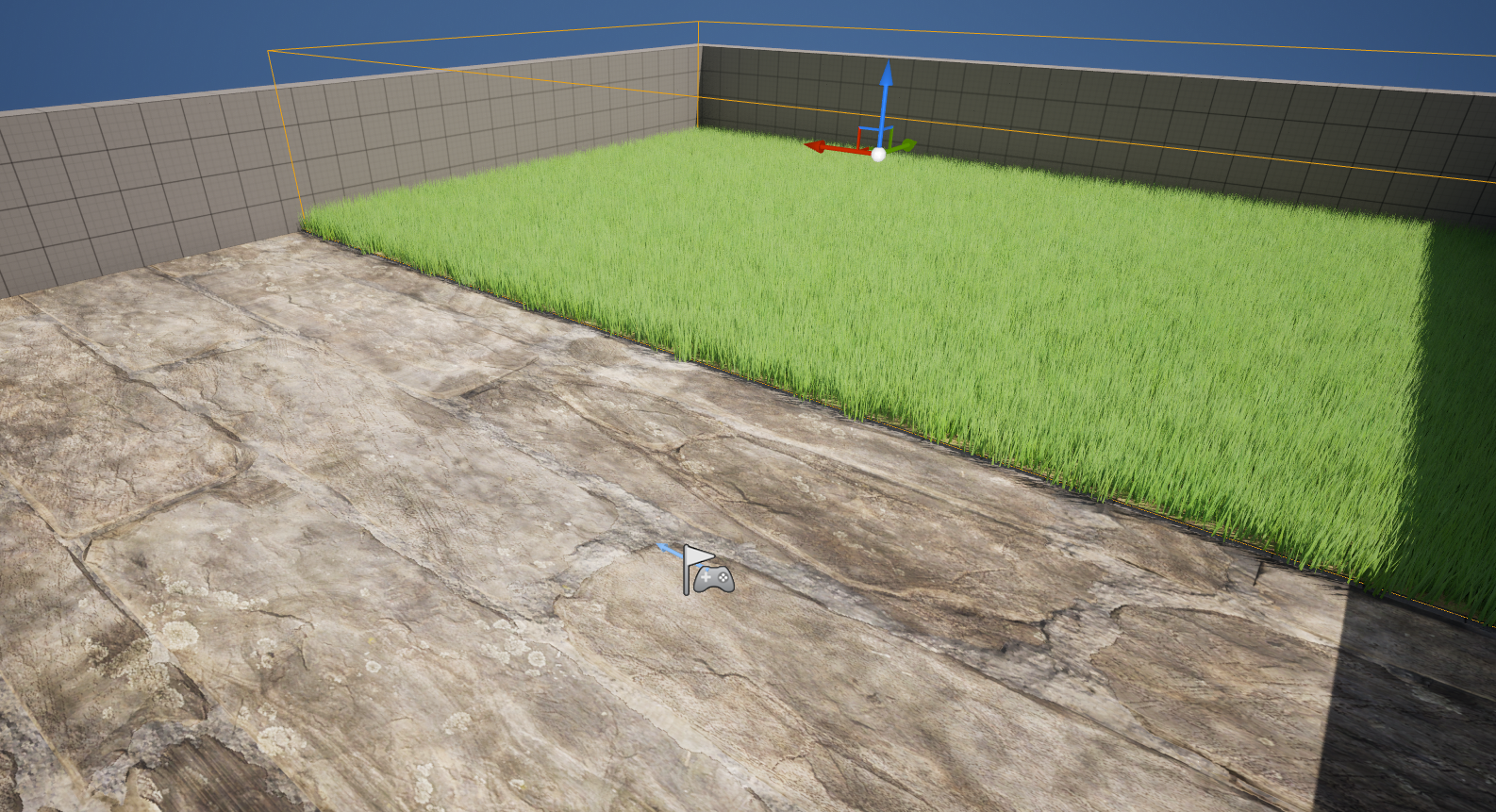

In the image below, a TriggerVolume targeting the grassland area is placed on the level.


Blueprint

Set Soundscape to only be applied when inside the TriggerVolume.

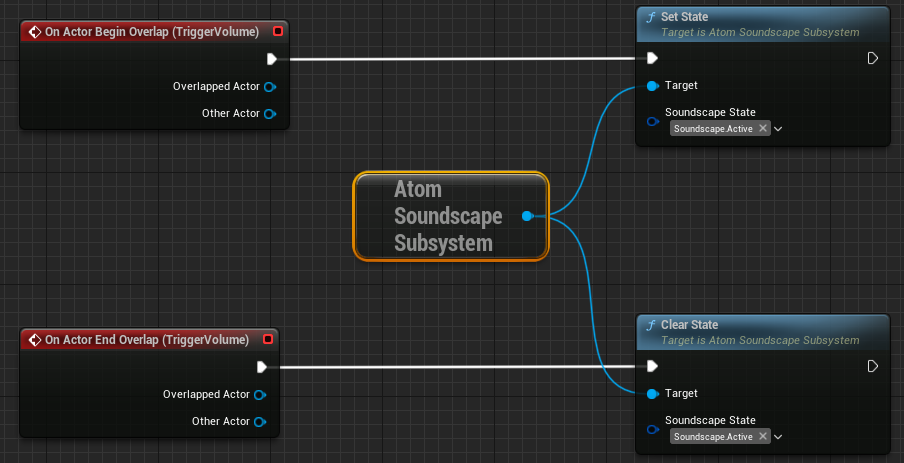

First, implement it in Blueprint as shown in the image below.

  • OnActorBeginOverlap: Enable "SoundScape.Active" using the SetState function of SoundscapeSubsystem.
  • OnActorEndOverlap: Disable "SoundScape.Active" using the ClearState function of SoundscapeSubsystem.

Check operation

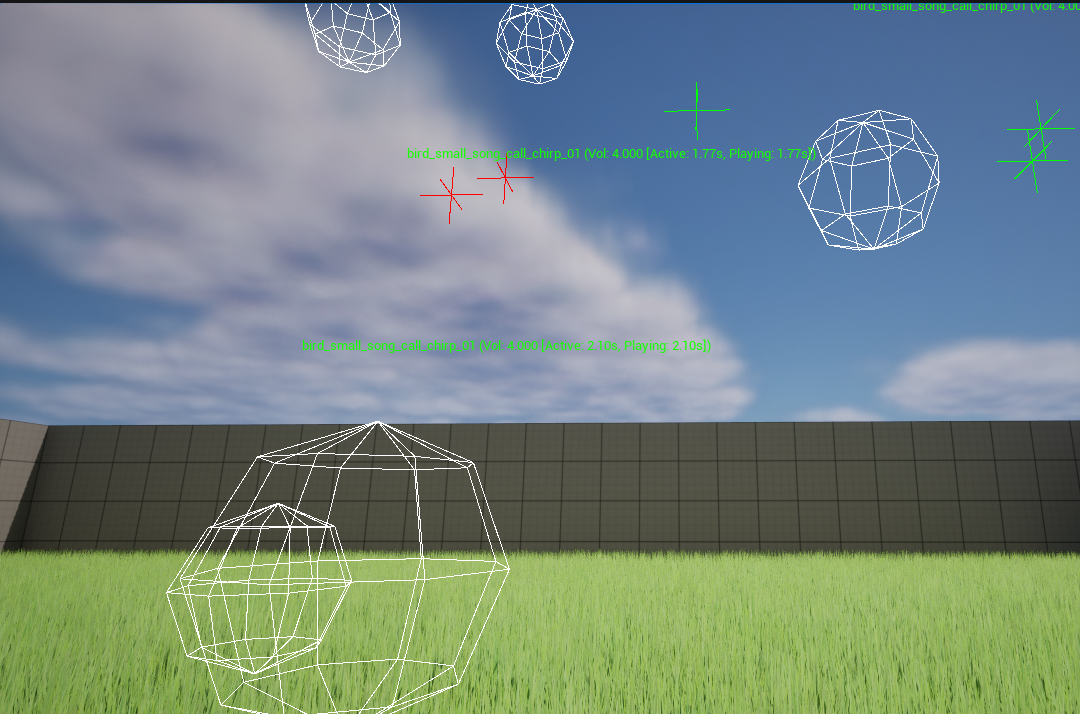

A sound will be generated where the sphere is View .

Tips: Visualize the sound source location

This plugin provides various debugging commands.

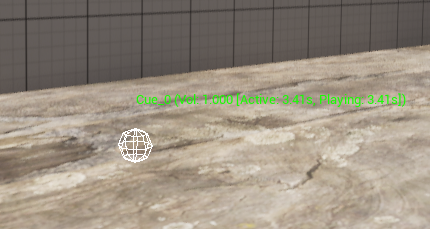

Executing "atom.3dVisualize.Enabled 1" will visualize the sound source position.
