Atom::FMixerSource类 参考

#include <AtomMixerSource.h>

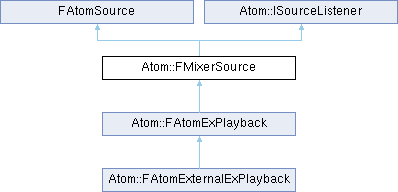

类 Atom::FMixerSource 继承关系图:

Public 成员函数
	FMixerSource (FAtomRuntime *InAtomRuntime)
virtual	~FMixerSource ()
virtual void	OnBeginGenerate () override
virtual void	OnDone () override
Public 成员函数 继承自 FAtomSource
CRIWARECORE_API	FAtomSource (FAtomRuntime *InAtomRuntime)
virtual CRIWARECORE_API	~FAtomSource ()=0
virtual CRIWARECORE_API FString	Describe (bool bUseLongName)
CRIWARECORE_API void	GetChannelLocations (FVector &Left, FVector &Right) const
virtual CRIWARECORE_API float	GetEnvelopeValue () const
virtual void *	GetNativeHandle () const =0
const FAtomPlaybackInstance *	GetPlaybackInstance () const
virtual CRIWARECORE_API float	GetPlaybackPercent () const
CRIWARECORE_API FAtomSpatializationParams	GetSpatializationParams ()
const FAtomWaveInfo &	GetWaveInfo () const
virtual bool	Init (FAtomPlaybackInstance *InPlaybackInstance)=0
virtual bool	IsFinished ()=0
bool	IsGameOnly () const
virtual bool	IsInitialized () const
bool	IsPaused () const
bool	IsPausedByGame () const
bool	IsPausedManually () const
bool	IsPlaying () const
virtual bool	IsPreparedToInit ()
virtual bool	IsStopping ()
virtual bool	IsVoiceSource () const
void	NotifyPlaybackData ()
virtual void	Play ()=0
virtual bool	PrepareForInitialization (FAtomPlaybackInstance *InPlaybackInstance)
CRIWARECORE_API void	SetFilterFrequency ()
void	SetPauseByGame (bool bInIsPauseByGame)
void	SetPauseManually (bool bInIsPauseManually)
void	SetVirtual ()
virtual CRIWARECORE_API void	Stop ()
virtual CRIWARECORE_API void	StopNow ()
virtual void	Update ()=0
CRIWARECORE_API void	UpdateStereoEmitterPositions ()
Public 成员函数 继承自 Atom::ISourceListener
virtual	~ISourceListener ()=default

Protected 类型
enum	EFreeReason { Deleter , Stop , Error }

Protected 成员函数
virtual void	FreeResources (EFreeReason InFreeReason)=0
int64	GetNumFramesPlayed () const
bool	InitSourceVoice (FAtomPlaybackInstance *InPlaybackInstance)
bool	IsUsingObjectBasedSpatialization () const
virtual void	SetupSourceBusData (TArray< FInitAudioBusSend > *OutAudioBusSends=nullptr, bool bEnableBusSends=true)
const TCHAR *	ToString (EFreeReason Value)
bool	UseObjectBasedSpatialization () const
bool	UseSourceDataOverridePlugin () const
Protected 成员函数 继承自 FAtomSource
CRIWARECORE_API float	GetDebugVolume (const float InVolume)
CRIWARECORE_API void	InitCommon ()
virtual void	Pause ()=0
CRIWARECORE_API void	UpdateCommon ()
void	UpdatePause ()

Protected 属性
bool	bDebugMode = false
FMixerSourcePlayer	MixerSourcePlayer
FMixerSourceVoice *	MixerSourceVoice = nullptr
Protected 属性 继承自 FAtomSource
FAtomRuntime *	AtomRuntime
uint8	bIsInitialized: 1
uint8	bIsManuallyPaused: 1
uint8	bIsPaused: 1
uint8	bIsPausedByGame: 1
FThreadSafeBool	bIsPlaying
uint8	bIsPreviewSound: 1
uint32	bIsVirtual: 1
friend	FAtomActiveSound
friend	FAtomRuntime
float	HPFFrequency
int32	LastHeardUpdate
float	LastHPFFrequency
float	LastLPFFrequency
int32	LastUpdate
FVector	LeftChannelSourceLocation
float	LPFFrequency
int32	NumFramesPlayed
int32	NumTotalFrames
float	Pitch
FAtomPlaybackInstance *	PlaybackInstance
float	PlaybackTime
FVector	RightChannelSourceLocation
int32	StartFrame
int32	TickCount
FAtomWaveInfo	WaveInfo

详细描述

Base class for sound sources that uses mixer ("Ex" in CriAtom) and source voices.

成员枚举类型说明

EFreeReason

enum Atom::FMixerSource::EFreeReason

protected

枚举值
Deleter
Stop
Error

构造及析构函数说明

FMixerSource()

Atom::FMixerSource::FMixerSource

(

FAtomRuntime *

InAtomRuntime

)

~FMixerSource()

Atom::FMixerSource::~FMixerSource ( )

virtual

成员函数说明

FreeResources()

virtual void Atom::FMixerSource::FreeResources ( EFreeReason InFreeReason )

protectedpure virtual

在 Atom::FAtomExPlayback 内被实现.

GetNumFramesPlayed()

int64 Atom::FMixerSource::GetNumFramesPlayed ( ) const

protected

InitSourceVoice()

bool Atom::FMixerSource::InitSourceVoice ( FAtomPlaybackInstance * InPlaybackInstance )

protected

IsUsingObjectBasedSpatialization()

bool Atom::FMixerSource::IsUsingObjectBasedSpatialization ( ) const

protected

Whether or not existing or new sources will use the HRTF spatializer.

OnBeginGenerate()

virtual void Atom::FMixerSource::OnBeginGenerate ( )

inlineoverridevirtual

实现了 Atom::ISourceListener.

OnDone()

virtual void Atom::FMixerSource::OnDone ( )

inlineoverridevirtual

实现了 Atom::ISourceListener.

SetupSourceBusData()

virtual void Atom::FMixerSource::SetupSourceBusData ( TArray< FInitAudioBusSend > * OutAudioBusSends = nullptr, bool bEnableBusSends = true )

inlineprotectedvirtual

被 Atom::FAtomExPlayback 重载.

ToString()

const TCHAR * Atom::FMixerSource::ToString ( EFreeReason Value )

inlineprotected

UseObjectBasedSpatialization()

bool Atom::FMixerSource::UseObjectBasedSpatialization ( ) const

protected

Whether or not we should create the source voice with the HRTF spatializer.

UseSourceDataOverridePlugin()

bool Atom::FMixerSource::UseSourceDataOverridePlugin ( ) const

protected

Whether or not to use the source data override plugin

类成员变量说明

bDebugMode

bool Atom::FMixerSource::bDebugMode = false

protected

MixerSourcePlayer

FMixerSourcePlayer Atom::FMixerSource::MixerSourcePlayer

protected

the explayer object that play may be null in case of using atomPlayer.

MixerSourceVoice

FMixerSourceVoice* Atom::FMixerSource::MixerSourceVoice = nullptr

protected

---

该类的文档由以下文件生成:

• C:/git/uev2/Engine/Plugins/Runtime/CriWare/CriWare/Source/CriWareCore/Public/Atom/Mixer/AtomMixerSource.h
• C:/git/uev2/Engine/Plugins/Runtime/CriWare/CriWare/Source/CriWareCore/Private/Atom/Mixer/AtomMixerSource.cpp
