AtomModulation::IGenerator クラス

#include <AtomModulationGenerator.h>

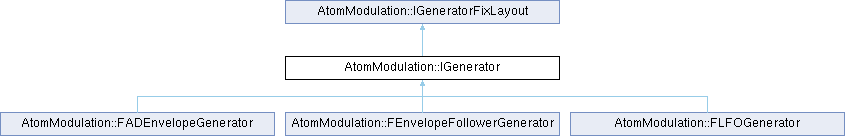

AtomModulation::IGenerator の継承関係図

公開メンバ関数
virtual	~IGenerator ()=default
virtual FGeneratorPtr	Clone () const =0
virtual void	GetDebugCategories (TArray< FString > &OutDebugCategories) const =0
virtual const FString &	GetDebugName () const =0
virtual void	GetDebugValues (TArray< FString > &OutDebugValues) const =0
virtual float	GetValue () const =0
virtual void	Init (FAtomRuntimeId InRuntimeID)
virtual bool	IsBypassed () const =0
void	PumpCommands ()
virtual void	Update (double InElapsed)=0
virtual void	UpdateGenerator (FGeneratorPtr &&InGenerator)=0
基底クラス AtomModulation::IGeneratorFixLayout に属する継承公開メンバ関数
virtual	~IGeneratorFixLayout ()=default

限定公開メンバ関数
CRI_API void	AtomThreadCommand (TUniqueFunction< void()> &&InCommand)

限定公開変数類
FAtomRuntimeId	AtomRuntimeID = INDEX_NONE

非公開変数類
TQueue< TUniqueFunction< void()> >	CommandQueue

構築子と解体子

~IGenerator()

virtual AtomModulation::IGenerator::~IGenerator ( )

virtualdefault

関数詳解

AtomThreadCommand()

void AtomModulation::IGenerator::AtomThreadCommand ( TUniqueFunction< void()> && InCommand )

protected

Clone()

virtual FGeneratorPtr AtomModulation::IGenerator::Clone ( ) const

pure virtual

AtomModulation::FADEnvelopeGenerator, AtomModulation::FEnvelopeFollowerGenerator, AtomModulation::FLFOGeneratorで実装されています。

GetDebugCategories()

virtual void AtomModulation::IGenerator::GetDebugCategories ( TArray< FString > & OutDebugCategories ) const

pure virtual

AtomModulation::FADEnvelopeGenerator, AtomModulation::FEnvelopeFollowerGenerator, AtomModulation::FLFOGeneratorで実装されています。

GetDebugName()

virtual const FString & AtomModulation::IGenerator::GetDebugName ( ) const

pure virtual

AtomModulation::FADEnvelopeGenerator, AtomModulation::FEnvelopeFollowerGenerator, AtomModulation::FLFOGeneratorで実装されています。

GetDebugValues()

virtual void AtomModulation::IGenerator::GetDebugValues ( TArray< FString > & OutDebugValues ) const

pure virtual

AtomModulation::FADEnvelopeGenerator, AtomModulation::FEnvelopeFollowerGenerator, AtomModulation::FLFOGeneratorで実装されています。

GetValue()

virtual float AtomModulation::IGenerator::GetValue ( ) const

pure virtual

Returns current value of the generator.

AtomModulation::FADEnvelopeGenerator, AtomModulation::FEnvelopeFollowerGenerator, AtomModulation::FLFOGeneratorで実装されています。

Init()

virtual void AtomModulation::IGenerator::Init ( FAtomRuntimeId InRuntimeID )

inlinevirtual

(Optional) Initializer step where the generator is provided the associated parent Atom runtime's Id.

AtomModulation::FEnvelopeFollowerGeneratorで再実装されています。

IsBypassed()

virtual bool AtomModulation::IGenerator::IsBypassed ( ) const

pure virtual

Returns whether or not the generator is bypassed.

AtomModulation::FADEnvelopeGenerator, AtomModulation::FEnvelopeFollowerGenerator, AtomModulation::FLFOGeneratorで実装されています。

PumpCommands()

void AtomModulation::IGenerator::PumpCommands

(

)

Pumps commands from Audio Thread to the generator's modulation processing thread.

Update()

virtual void AtomModulation::IGenerator::Update ( double InElapsed )

pure virtual

Updates the generators value at the audio block rate on the modulation processing thread.

AtomModulation::FADEnvelopeGenerator, AtomModulation::FEnvelopeFollowerGenerator, AtomModulation::FLFOGeneratorで実装されています。

UpdateGenerator()

virtual void AtomModulation::IGenerator::UpdateGenerator ( FGeneratorPtr && InGenerator )

pure virtual

Allows child generator class to override default copy/update behavior when receiving an updated generator call from the Atom thread. Useful for ignoring updates while a generator is running or deferring the transition to the new generator state to the modulation processing thread. This enables interpolating between existing and new generator state, properties, avoiding discontinuities, etc.

引数

InGenerator

- The constructed version of the generator being sent from the Atom Thread

AtomModulation::FADEnvelopeGenerator, AtomModulation::FEnvelopeFollowerGenerator, AtomModulation::FLFOGeneratorで実装されています。

メンバ詳解

AtomRuntimeID

FAtomRuntimeId AtomModulation::IGenerator::AtomRuntimeID = INDEX_NONE

protected

CommandQueue

TQueue<TUniqueFunction<void()> > AtomModulation::IGenerator::CommandQueue

private

---

このクラス詳解は次のファイルから抽出されました:

• C:/git/Engine/Plugins/Runtime/CriWare/CriWare/Source/CriWareCore/Public/Atom/Modulation/AtomModulationGenerator.h
• C:/git/Engine/Plugins/Runtime/CriWare/CriWare/Source/CriWareCore/Private/Atom/Modulation/AtomModulationGenerator.cpp
