UAtomRackWithParentBase クラス

#include <AtomRack.h>

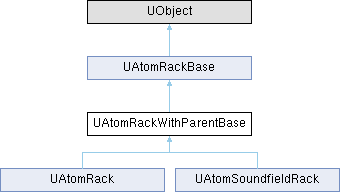

UAtomRackWithParentBase の継承関係図

公開メンバ関数

 UAtomRackWithParentBase (const FObjectInitializer &ObjectInitializer)
void SetParentRack (UAtomRackBase *InParentRack)
基底クラス UAtomRackBase に属する継承公開メンバ関数
 UAtomRackBase (const FObjectInitializer &ObjectInitializer)
void AddLevelMeterDelegate (const UObject *WorldContextObject, const FOnAtomRackLevelMeterMeasureBP &OnAtomRackLevelMeterMeasureBP)
void AddLoudnessMeterDelegate (const UObject *WorldContextObject, const FOnAtomRackLoudnessMeterMeasureBP &OnAtomRackLoudnessMeterMeasureBP)
void AddPerformanceMonitorDelegate (const UObject *WorldContextObject, const FOnAtomRackPerformanceMonitorResultBP &OnAtomRackPerformanceMonitorResultBP)
void AddRenderedSamplesDelegate (const UObject *WorldContextObject, const FOnAtomRackRenderedSamplesBP &OnAtomRackRenderedSamplesBP)
void AddTruePeakMeterDelegate (const UObject *WorldContextObject, const FOnAtomRackTruePeakMeterMeasureBP &OnAtomRackTruePeakMeterMeasureBP)
void RemoveLevelMeterDelegate (const UObject *WorldContextObject, const FOnAtomRackLevelMeterMeasureBP &OnAtomRackLevelMeterMeasureBP)
void RemoveLoudnessMeterDelegate (const UObject *WorldContextObject, const FOnAtomRackLoudnessMeterMeasureBP &OnAtomRackLoudnessMeterMeasureBP)
void RemovePerformanceMonitorDelegate (const UObject *WorldContextObject, const FOnAtomRackPerformanceMonitorResultBP &OnAtomRackPerformanceMonitorResultBP)
void RemoveRenderedSamplesDelegate (const UObject *WorldContextObject, const FOnAtomRackRenderedSamplesBP &OnAtomRackRenderedSamplesBP)
void RemoveTruePeakMeterDelegate (const UObject *WorldContextObject, const FOnAtomRackTruePeakMeterMeasureBP &OnAtomRackTruePeakMeterMeasureBP)
void ResetLoudnessMeterMeasuring (const UObject *WorldContextObject)
void ResetLoudnessMeterMeasuring (FAtomRuntime *InAtomRuntime)
void ResetPerformanceMonitor (const UObject *WorldContextObject)
void ResetPerformanceMonitor (FAtomRuntime *InAtomRuntime)
void StartLevelMeterMeasuring (const UObject *WorldContextObject, float AnalysisPeriod=0.02f, int32 PeakHoldTime=100)
void StartLevelMeterMeasuring (FAtomRuntime *InAtomRuntime, float AnalysisPeriod=0.02f, int32 PeakHoldTime=100)
void StartLoudnessMeterMeasuring (const UObject *WorldContextObject, int32 ShortTermTime=3, int32 IntegratedTime=600)
void StartLoudnessMeterMeasuring (FAtomRuntime *InAtomRuntime, int32 ShortTermTime=3, int32 IntegratedTime=600)
void StartTruePeakMeterMeasuring (const UObject *WorldContextObject, float AnalysisPeriod=0.02f, int32 PeakHoldTime=100, bool bSampleClipping=false)
void StartTruePeakMeterMeasuring (FAtomRuntime *InAtomRuntime, float AnalysisPeriod=0.02f, int32 PeakHoldTime=100, bool bSampleClipping=false)
void StopLevelMeterMeasuring (const UObject *WorldContextObject)
void StopLevelMeterMeasuring (FAtomRuntime *InAtomRuntime)
void StopLoudnessMeterMeasuring (const UObject *WorldContextObject)
void StopLoudnessMeterMeasuring (FAtomRuntime *InAtomRuntime)
void StopTruePeakMeterMeasuring (const UObject *WorldContextObject)
void StopTruePeakMeterMeasuring (FAtomRuntime *InAtomRuntime)

公開変数類

TObjectPtr< UAtomBus > MasterBus
TObjectPtr< UAtomRackBase > ParentRack
基底クラス UAtomRackBase に属する継承公開変数類
TArray< TObjectPtr< UAtomRackBase > > ChildRacks

限定公開メンバ関数

virtual void PostInitProperties () override
virtual void PostLoad () override
基底クラス UAtomRackBase に属する継承限定公開メンバ関数
virtual void BeginDestroy () override
virtual FString GetDesc () override
virtual void Serialize (FArchive &Ar) override

その他の継承メンバ

基底クラス UAtomRackBase に属する継承静的公開メンバ関数
static FAtomLevelMeterSettings GetLevelMeterSettings (float AnalysisPeriod, int32 PeakHoldTime)
static FAtomLoudnessMeterSettings GetLoudnessMeterSettings (int32 ShortTermTime, int32 IntegratedTime)
static FAtomTruePeakMeterSettings GetTruePeakMeterSettings (float AnalysisPeriod, int32 PeakHoldTime, bool bSampleClipping)
基底クラス UAtomRackBase に属する継承静的公開変数類
static const FString MainBusName = TEXT("MasterOut")

詳解

This rack class can be derived from for racks that output to a parent rack.

構築子と解体子

◆ UAtomRackWithParentBase()

UAtomRackWithParentBase::UAtomRackWithParentBase ( const FObjectInitializer & ObjectInitializer)

関数詳解

◆ PostInitProperties()

void UAtomRackWithParentBase::PostInitProperties ( )
overrideprotectedvirtual

UAtomRack, UAtomSoundfieldRackで再実装されています。

◆ PostLoad()

void UAtomRackWithParentBase::PostLoad ( )
overrideprotectedvirtual

UAtomRackBaseを再実装しています。

UAtomRackで再実装されています。

◆ SetParentRack()

void UAtomRackWithParentBase::SetParentRack ( UAtomRackBase * InParentRack)

Set the parent rack of this AtomRack, removing it as a child from its previous owner

引数
InParentRackThe new parent rack of this

メンバ詳解

◆ MasterBus

TObjectPtr<UAtomBus> UAtomRackWithParentBase::MasterBus

◆ ParentRack

TObjectPtr<UAtomRackBase> UAtomRackWithParentBase::ParentRack
このクラス詳解は次のファイルから抽出されました:
  • C:/git/Engine/Plugins/Runtime/CriWare/CriWare/Source/CriWareCore/Public/Atom/AtomRack.h
  • C:/git/Engine/Plugins/Runtime/CriWare/CriWare/Source/CriWareCore/Private/Atom/AtomRack.cpp
