AtomModulation::IGenerator Class Reference

#include <AtomModulationGenerator.h>

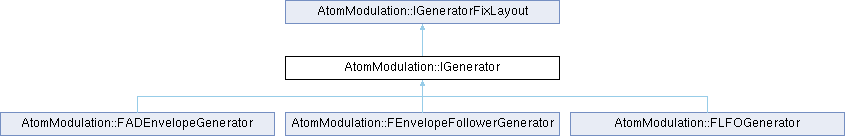

Inheritance diagram for AtomModulation::IGenerator:

Public Member Functions
virtual	~IGenerator ()=default
virtual FGeneratorPtr	Clone () const =0
virtual void	GetDebugCategories (TArray< FString > &OutDebugCategories) const =0
virtual const FString &	GetDebugName () const =0
virtual void	GetDebugValues (TArray< FString > &OutDebugValues) const =0
virtual float	GetValue () const =0
virtual void	Init (FAtomRuntimeId InRuntimeID)
virtual bool	IsBypassed () const =0
void	PumpCommands ()
virtual void	Update (double InElapsed)=0
virtual void	UpdateGenerator (FGeneratorPtr &&InGenerator)=0
Public Member Functions inherited from AtomModulation::IGeneratorFixLayout
virtual	~IGeneratorFixLayout ()=default

Protected Member Functions
CRI_API void	AtomThreadCommand (TUniqueFunction< void()> &&InCommand)

Protected Attributes
FAtomRuntimeId	AtomRuntimeID = INDEX_NONE

Private Attributes
TQueue< TUniqueFunction< void()> >	CommandQueue

Constructor & Destructor Documentation

~IGenerator()

virtual AtomModulation::IGenerator::~IGenerator ( )

virtualdefault

Member Function Documentation

AtomThreadCommand()

void AtomModulation::IGenerator::AtomThreadCommand ( TUniqueFunction< void()> && InCommand )

protected

Clone()

virtual FGeneratorPtr AtomModulation::IGenerator::Clone ( ) const

pure virtual

Implemented in AtomModulation::FADEnvelopeGenerator, AtomModulation::FEnvelopeFollowerGenerator, and AtomModulation::FLFOGenerator.

GetDebugCategories()

virtual void AtomModulation::IGenerator::GetDebugCategories ( TArray< FString > & OutDebugCategories ) const

pure virtual

Implemented in AtomModulation::FADEnvelopeGenerator, AtomModulation::FEnvelopeFollowerGenerator, and AtomModulation::FLFOGenerator.

GetDebugName()

virtual const FString & AtomModulation::IGenerator::GetDebugName ( ) const

pure virtual

Implemented in AtomModulation::FADEnvelopeGenerator, AtomModulation::FEnvelopeFollowerGenerator, and AtomModulation::FLFOGenerator.

GetDebugValues()

virtual void AtomModulation::IGenerator::GetDebugValues ( TArray< FString > & OutDebugValues ) const

pure virtual

Implemented in AtomModulation::FADEnvelopeGenerator, AtomModulation::FEnvelopeFollowerGenerator, and AtomModulation::FLFOGenerator.

GetValue()

virtual float AtomModulation::IGenerator::GetValue ( ) const

pure virtual

Returns current value of the generator.

Implemented in AtomModulation::FADEnvelopeGenerator, AtomModulation::FEnvelopeFollowerGenerator, and AtomModulation::FLFOGenerator.

Init()

virtual void AtomModulation::IGenerator::Init ( FAtomRuntimeId InRuntimeID )

inlinevirtual

(Optional) Initializer step where the generator is provided the associated parent Atom runtime's Id.

Reimplemented in AtomModulation::FEnvelopeFollowerGenerator.

IsBypassed()

virtual bool AtomModulation::IGenerator::IsBypassed ( ) const

pure virtual

Returns whether or not the generator is bypassed.

Implemented in AtomModulation::FADEnvelopeGenerator, AtomModulation::FEnvelopeFollowerGenerator, and AtomModulation::FLFOGenerator.

PumpCommands()

void AtomModulation::IGenerator::PumpCommands

(

)

Pumps commands from Audio Thread to the generator's modulation processing thread.

Update()

virtual void AtomModulation::IGenerator::Update ( double InElapsed )

pure virtual

Updates the generators value at the audio block rate on the modulation processing thread.

Implemented in AtomModulation::FADEnvelopeGenerator, AtomModulation::FEnvelopeFollowerGenerator, and AtomModulation::FLFOGenerator.

UpdateGenerator()

virtual void AtomModulation::IGenerator::UpdateGenerator ( FGeneratorPtr && InGenerator )

pure virtual

Allows child generator class to override default copy/update behavior when receiving an updated generator call from the Atom thread. Useful for ignoring updates while a generator is running or deferring the transition to the new generator state to the modulation processing thread. This enables interpolating between existing and new generator state, properties, avoiding discontinuities, etc.

Parameters

InGenerator

- The constructed version of the generator being sent from the Atom Thread

Implemented in AtomModulation::FADEnvelopeGenerator, AtomModulation::FEnvelopeFollowerGenerator, and AtomModulation::FLFOGenerator.

Member Data Documentation

AtomRuntimeID

FAtomRuntimeId AtomModulation::IGenerator::AtomRuntimeID = INDEX_NONE

protected

CommandQueue

TQueue<TUniqueFunction<void()> > AtomModulation::IGenerator::CommandQueue

private

---

The documentation for this class was generated from the following files:

• C:/git/uev2/Engine/Plugins/Runtime/CriWare/CriWare/Source/CriWareCore/Public/Atom/Modulation/AtomModulationGenerator.h
• C:/git/uev2/Engine/Plugins/Runtime/CriWare/CriWare/Source/CriWareCore/Private/Atom/Modulation/AtomModulationGenerator.cpp
