UAtomRackWithParentBase Class Reference

#include <AtomRack.h>

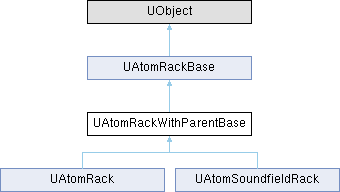

Inheritance diagram for UAtomRackWithParentBase:

Public Member Functions

 UAtomRackWithParentBase (const FObjectInitializer &ObjectInitializer)
void SetParentRack (UAtomRackBase *InParentRack)
Public Member Functions inherited from UAtomRackBase
 UAtomRackBase (const FObjectInitializer &ObjectInitializer)
void AddLevelMeterDelegate (const UObject *WorldContextObject, const FOnAtomRackLevelMeterMeasureBP &OnAtomRackLevelMeterMeasureBP)
void AddLoudnessMeterDelegate (const UObject *WorldContextObject, const FOnAtomRackLoudnessMeterMeasureBP &OnAtomRackLoudnessMeterMeasureBP)
void AddPerformanceMonitorDelegate (const UObject *WorldContextObject, const FOnAtomRackPerformanceMonitorResultBP &OnAtomRackPerformanceMonitorResultBP)
void AddRenderedSamplesDelegate (const UObject *WorldContextObject, const FOnAtomRackRenderedSamplesBP &OnAtomRackRenderedSamplesBP)
void AddTruePeakMeterDelegate (const UObject *WorldContextObject, const FOnAtomRackTruePeakMeterMeasureBP &OnAtomRackTruePeakMeterMeasureBP)
void RemoveLevelMeterDelegate (const UObject *WorldContextObject, const FOnAtomRackLevelMeterMeasureBP &OnAtomRackLevelMeterMeasureBP)
void RemoveLoudnessMeterDelegate (const UObject *WorldContextObject, const FOnAtomRackLoudnessMeterMeasureBP &OnAtomRackLoudnessMeterMeasureBP)
void RemovePerformanceMonitorDelegate (const UObject *WorldContextObject, const FOnAtomRackPerformanceMonitorResultBP &OnAtomRackPerformanceMonitorResultBP)
void RemoveRenderedSamplesDelegate (const UObject *WorldContextObject, const FOnAtomRackRenderedSamplesBP &OnAtomRackRenderedSamplesBP)
void RemoveTruePeakMeterDelegate (const UObject *WorldContextObject, const FOnAtomRackTruePeakMeterMeasureBP &OnAtomRackTruePeakMeterMeasureBP)
void ResetLoudnessMeterMeasuring (const UObject *WorldContextObject)
void ResetLoudnessMeterMeasuring (FAtomRuntime *InAtomRuntime)
void ResetPerformanceMonitor (const UObject *WorldContextObject)
void ResetPerformanceMonitor (FAtomRuntime *InAtomRuntime)
void StartLevelMeterMeasuring (const UObject *WorldContextObject, float AnalysisPeriod=0.02f, int32 PeakHoldTime=100)
void StartLevelMeterMeasuring (FAtomRuntime *InAtomRuntime, float AnalysisPeriod=0.02f, int32 PeakHoldTime=100)
void StartLoudnessMeterMeasuring (const UObject *WorldContextObject, int32 ShortTermTime=3, int32 IntegratedTime=600)
void StartLoudnessMeterMeasuring (FAtomRuntime *InAtomRuntime, int32 ShortTermTime=3, int32 IntegratedTime=600)
void StartTruePeakMeterMeasuring (const UObject *WorldContextObject, float AnalysisPeriod=0.02f, int32 PeakHoldTime=100, bool bSampleClipping=false)
void StartTruePeakMeterMeasuring (FAtomRuntime *InAtomRuntime, float AnalysisPeriod=0.02f, int32 PeakHoldTime=100, bool bSampleClipping=false)
void StopLevelMeterMeasuring (const UObject *WorldContextObject)
void StopLevelMeterMeasuring (FAtomRuntime *InAtomRuntime)
void StopLoudnessMeterMeasuring (const UObject *WorldContextObject)
void StopLoudnessMeterMeasuring (FAtomRuntime *InAtomRuntime)
void StopTruePeakMeterMeasuring (const UObject *WorldContextObject)
void StopTruePeakMeterMeasuring (FAtomRuntime *InAtomRuntime)

Public Attributes

TObjectPtr< UAtomBus > MasterBus
TObjectPtr< UAtomRackBase > ParentRack
Public Attributes inherited from UAtomRackBase
TArray< TObjectPtr< UAtomRackBase > > ChildRacks

Protected Member Functions

virtual void PostInitProperties () override
virtual void PostLoad () override
Protected Member Functions inherited from UAtomRackBase
virtual void BeginDestroy () override
virtual FString GetDesc () override
virtual void Serialize (FArchive &Ar) override

Additional Inherited Members

Static Public Member Functions inherited from UAtomRackBase
static FAtomLevelMeterSettings GetLevelMeterSettings (float AnalysisPeriod, int32 PeakHoldTime)
static FAtomLoudnessMeterSettings GetLoudnessMeterSettings (int32 ShortTermTime, int32 IntegratedTime)
static FAtomTruePeakMeterSettings GetTruePeakMeterSettings (float AnalysisPeriod, int32 PeakHoldTime, bool bSampleClipping)
Static Public Attributes inherited from UAtomRackBase
static const FString MainBusName = TEXT("MasterOut")

Detailed Description

This rack class can be derived from for racks that output to a parent rack.

Constructor & Destructor Documentation

◆ UAtomRackWithParentBase()

UAtomRackWithParentBase::UAtomRackWithParentBase ( const FObjectInitializer & ObjectInitializer)

Member Function Documentation

◆ PostInitProperties()

void UAtomRackWithParentBase::PostInitProperties ( )
overrideprotectedvirtual

Reimplemented in UAtomRack, and UAtomSoundfieldRack.

◆ PostLoad()

void UAtomRackWithParentBase::PostLoad ( )
overrideprotectedvirtual

Reimplemented from UAtomRackBase.

Reimplemented in UAtomRack.

◆ SetParentRack()

void UAtomRackWithParentBase::SetParentRack ( UAtomRackBase * InParentRack)

Set the parent rack of this AtomRack, removing it as a child from its previous owner

Parameters
InParentRackThe new parent rack of this

Member Data Documentation

◆ MasterBus

TObjectPtr<UAtomBus> UAtomRackWithParentBase::MasterBus

◆ ParentRack

TObjectPtr<UAtomRackBase> UAtomRackWithParentBase::ParentRack
The documentation for this class was generated from the following files:
  • C:/git/uev2/Engine/Plugins/Runtime/CriWare/CriWare/Source/CriWareCore/Public/Atom/AtomRack.h
  • C:/git/uev2/Engine/Plugins/Runtime/CriWare/CriWare/Source/CriWareCore/Private/Atom/AtomRack.cpp
