#include <AtomGameplayVolumeSubsystem.h>

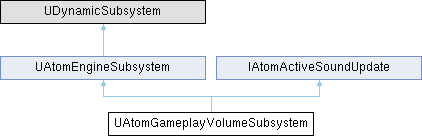

类 UAtomGameplayVolumeSubsystem 继承关系图:

Public 成员函数
	UAtomGameplayVolumeSubsystem ()
virtual	~UAtomGameplayVolumeSubsystem ()=default
void	AddVolumeComponent (const UAtomGameplayVolumeComponent *VolumeComponent)
virtual void	ApplyInteriorSettings (const FAtomActiveSound &ActiveSound, FAtomSoundParseParameters &ParseParams) override
virtual void	Deinitialize () override
virtual void	GatherInteriorData (const FAtomActiveSound &ActiveSound, FAtomSoundParseParameters &ParseParams) override
UPrimitiveComponent *	GetPrimitiveComponent (const UAtomGameplayVolumeComponent *VolumeComponent)
const UAtomGameplayVolumeComponent *	GetVolumeComponent (uint32 VolumeID)
const void	IterateOverVolumeComponents (TUniqueFunction< void(uint32, const UAtomGameplayVolumeComponent *)> ForEachComponent)
virtual void	NotifyActiveSoundDeleting (const FAtomActiveSound &ActiveSound) override
void	RemoveVolumeComponent (const UAtomGameplayVolumeComponent *VolumeComponent)
virtual bool	ShouldCreateSubsystem (UObject *Outer) const override
virtual void	Update () override
void	UpdateVolumeComponent (const UAtomGameplayVolumeComponent *VolumeComponent)
Public 成员函数继承自 UAtomEngineSubsystem
CRIWARECORE_API	UAtomEngineSubsystem ()
virtual CRIWARECORE_API const FAtomRuntime *	GetAtomRuntime () const final
virtual CRIWARECORE_API FAtomRuntimeHandle	GetAtomRuntimeHandle () const final
virtual CRIWARECORE_API FAtomRuntimeId	GetAtomRuntimeID () const final
virtual CRIWARECORE_API FAtomRuntime *	GetMutableAtomRuntime () final
virtual CRIWARECORE_API Atom::FMixerSourceManager *	GetMutableSourceManager () final
virtual CRIWARECORE_API const Atom::FMixerSourceManager *	GetSourceManager () const final
Public 成员函数继承自 IAtomActiveSoundUpdate
virtual void	NotifyActiveSoundCreated (FAtomActiveSound &ActiveSound)
virtual void	NotifyActiveSoundOwner (FAtomActiveSound &ActiveSound, const UObject *Owner)
virtual void	NotifyVirtualizedSoundCreated (FAtomActiveSound &ActiveSound)
virtual void	NotifyVirtualizedSoundDeleting (const FAtomActiveSound &ActiveSound)
virtual void	OnNotifyPendingDelete (const FAtomActiveSound &ActiveSound)

Protected 成员函数
bool	AddProxy (uint32 AtomGameplayVolumeID, uint32 WorldID)
bool	DoesSupportWorld (UWorld *World) const
void	GenerateVolumeProxyList ()
bool	IsAnyListenerInVolume (uint32 WorldID, uint32 VolumeID) const
bool	RemoveProxy (uint32 AtomGameplayVolumeID)
void	UpdateComponentsFromProxyInfo (const FAtomGameplayProxyUpdateResult &ProxyResults) const
void	UpdateFromListeners ()
bool	UpdateProxy (uint32 AtomGameplayVolumeID)

Protected 属性
TMap< uint32, FAtomGameplayActiveSoundInfo >	ActiveSoundData
TMap< uint32, TObjectPtr< const UAtomGameplayVolumeComponent > >	AGVComponents
TArray< FAtomGameplayVolumeListener >	AGVListeners
bool	bHasStaleProxy = false
TArray< uint32 >	KnownProxyIDs
float	NextUpdateDeltaTime = 0.f
int32	PreviousProxyCount = 0
float	TimeSinceUpdate = 0.f
TArray< TObjectPtr< UAtomGameplayVolumeProxy > >	TransientProxyList
TMap< uint32, FAtomGameplayVolumeProxyInfo >	WorldProxyLists

详细描述

UAtomGameplayVolumeSubsystem

构造及析构函数说明

◆ UAtomGameplayVolumeSubsystem()

UAtomGameplayVolumeSubsystem::UAtomGameplayVolumeSubsystem ( )

◆ ~UAtomGameplayVolumeSubsystem()

virtual UAtomGameplayVolumeSubsystem::~UAtomGameplayVolumeSubsystem ( )

virtualdefault

成员函数说明

◆ AddProxy()

bool UAtomGameplayVolumeSubsystem::AddProxy	(	uint32	AtomGameplayVolumeID,
		uint32	WorldID )

protected

(Atom Thread Only) Add, Update, Remove ProxyVolumes.

◆ AddVolumeComponent()

void UAtomGameplayVolumeSubsystem::AddVolumeComponent ( const UAtomGameplayVolumeComponent * VolumeComponent )

Add a volume to the system

◆ ApplyInteriorSettings()

void UAtomGameplayVolumeSubsystem::ApplyInteriorSettings	(	const FAtomActiveSound &	ActiveSound,
		FAtomSoundParseParameters &	ParseParams )

overridevirtual

Applies interior data previously collected to the active sound and parse parameters.

参数

ActiveSound	The active sound affected.
ParseParams	The parameters to apply to the playback instances.

重载 IAtomActiveSoundUpdate .

◆ Deinitialize()

void UAtomGameplayVolumeSubsystem::Deinitialize ( )

overridevirtual

◆ DoesSupportWorld()

bool UAtomGameplayVolumeSubsystem::DoesSupportWorld ( UWorld * World ) const

protected

Returns true if we allow volumes from the world's type.

◆ GatherInteriorData()

void UAtomGameplayVolumeSubsystem::GatherInteriorData	(	const FAtomActiveSound &	ActiveSound,
		FAtomSoundParseParameters &	ParseParams )

overridevirtual

Gathers interior data that can affect the active sound. Non-const as this step can be used to track state about the sound on the implementing object.

参数

ActiveSound	The active sound affected.
ParseParams	The parameters to apply to the playback instances.

重载 IAtomActiveSoundUpdate .

◆ GenerateVolumeProxyList()

void UAtomGameplayVolumeSubsystem::GenerateVolumeProxyList ( )

protected

Generate a list of volume proxies from our component list

◆ GetPrimitiveComponent()

UPrimitiveComponent * UAtomGameplayVolumeSubsystem::GetPrimitiveComponent ( const UAtomGameplayVolumeComponent * VolumeComponent )

Gets the primitive component from the volume or null if volume proxy.

◆ GetVolumeComponent()

const UAtomGameplayVolumeComponent * UAtomGameplayVolumeSubsystem::GetVolumeComponent ( uint32 VolumeID )

Gets the Volume form its VolumeID if exist or null.

◆ IsAnyListenerInVolume()

bool UAtomGameplayVolumeSubsystem::IsAnyListenerInVolume	(	uint32	WorldID,
		uint32	VolumeID ) const

protected

Returns true if a listener associated with WorldID is inside the volume (by ID).

◆ IterateOverVolumeComponents()

const void UAtomGameplayVolumeSubsystem::IterateOverVolumeComponents ( TUniqueFunction< void(uint32, const UAtomGameplayVolumeComponent *)> ForEachComponent )

inline

◆ NotifyActiveSoundDeleting()

void UAtomGameplayVolumeSubsystem::NotifyActiveSoundDeleting ( const FAtomActiveSound & ActiveSound )

overridevirtual

Called when an active sound has just been removed from the audio engine, by being stopped or virtualized. In either case, the referenced ActiveSound object is about to be deleted; any pointers to it should be discarded.

NOTE! Called on the AudioThread

参数

ActiveSound The active sound being deleted

重载 IAtomActiveSoundUpdate .

◆ RemoveProxy()

bool UAtomGameplayVolumeSubsystem::RemoveProxy ( uint32 AtomGameplayVolumeID )

protected

◆ RemoveVolumeComponent()

void UAtomGameplayVolumeSubsystem::RemoveVolumeComponent ( const UAtomGameplayVolumeComponent * VolumeComponent )

Remove a volume from the system

◆ ShouldCreateSubsystem()

bool UAtomGameplayVolumeSubsystem::ShouldCreateSubsystem ( UObject * Outer ) const

overridevirtual

◆ Update()

void UAtomGameplayVolumeSubsystem::Update ( )

overridevirtual

Override to get an update call during AtomRuntime::Update Note: This call will happen on the Atom thread

重载 UAtomEngineSubsystem .

◆ UpdateComponentsFromProxyInfo()

void UAtomGameplayVolumeSubsystem::UpdateComponentsFromProxyInfo ( const FAtomGameplayProxyUpdateResult & ProxyResults ) const

protected

Update the components driven by proxies on the game thread.

◆ UpdateFromListeners()

void UAtomGameplayVolumeSubsystem::UpdateFromListeners ( )

protected

Update our representation of Atom listeners on the Atom thread.

◆ UpdateProxy()

bool UAtomGameplayVolumeSubsystem::UpdateProxy ( uint32 AtomGameplayVolumeID )

protected

◆ UpdateVolumeComponent()

void UAtomGameplayVolumeSubsystem::UpdateVolumeComponent ( const UAtomGameplayVolumeComponent * VolumeComponent )

Update an existing volume in the system

类成员变量说明

◆ ActiveSoundData

TMap<uint32, FAtomGameplayActiveSoundInfo> UAtomGameplayVolumeSubsystem::ActiveSoundData

protected

◆ AGVComponents

TMap<uint32, TObjectPtr<const UAtomGameplayVolumeComponent> > UAtomGameplayVolumeSubsystem::AGVComponents

protected

◆ AGVListeners

TArray<FAtomGameplayVolumeListener> UAtomGameplayVolumeSubsystem::AGVListeners

protected

◆ bHasStaleProxy

bool UAtomGameplayVolumeSubsystem::bHasStaleProxy = false

protected

◆ KnownProxyIDs

TArray<uint32> UAtomGameplayVolumeSubsystem::KnownProxyIDs

protected

◆ NextUpdateDeltaTime

float UAtomGameplayVolumeSubsystem::NextUpdateDeltaTime = 0.f

protected

◆ PreviousProxyCount

int32 UAtomGameplayVolumeSubsystem::PreviousProxyCount = 0

protected

◆ TimeSinceUpdate

float UAtomGameplayVolumeSubsystem::TimeSinceUpdate = 0.f

protected

◆ TransientProxyList

TArray<TObjectPtr<UAtomGameplayVolumeProxy> > UAtomGameplayVolumeSubsystem::TransientProxyList

protected

◆ WorldProxyLists

TMap<uint32, FAtomGameplayVolumeProxyInfo> UAtomGameplayVolumeSubsystem::WorldProxyLists

protected

该类的文档由以下文件生成:

C:/git/uev2/Engine/Plugins/Runtime/CriWare/CriWare/Source/CriWareCore/Public/Atom/Gameplay/AtomGameplayVolumeSubsystem.h
C:/git/uev2/Engine/Plugins/Runtime/CriWare/CriWare/Source/CriWareCore/Private/Atom/Gameplay/AtomGameplayVolumeSubsystem.cpp
