UAtomSoundHandleSubsystem クラス

#include <AtomSoundHandleSubsystem.h>

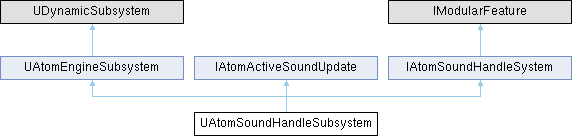

UAtomSoundHandleSubsystem の継承関係図

クラス
struct	FSoundHandle

公開メンバ関数
virtual	~UAtomSoundHandleSubsystem () override=default
virtual Atom::FSoundHandleID	CreateSoundHandle (UAtomSoundBase *Sound, IAtomSoundHandleOwner *Owner) override
	This should create a sound and we should map it to an identifier. Then return the identifier to the owner to keep track of
virtual void	Deinitialize () override
virtual void	Initialize (FSubsystemCollectionBase &Collection) override
virtual void	NotifyActiveSoundDeleting (const FAtomActiveSound &ActiveSound) override
virtual void	NotifyVirtualizedSoundDeleting (const FAtomActiveSound &ActiveSound) override
virtual Atom::EResult	Play (Atom::FSoundHandleID ID) override
	Play the sound that is represented by the sound handle with the following ID
virtual void	SetTransform (Atom::FSoundHandleID ID, const FTransform &Transform) override
	Set the transform on the sound that is represented by the sound handle with the following ID
virtual bool	ShouldCreateSubsystem (UObject *Outer) const override
virtual void	Stop (Atom::FSoundHandleID ID) override
	Stop the sound that is represented by the sound handle with the following ID
基底クラス UAtomEngineSubsystem に属する継承公開メンバ関数
CRIWARECORE_API	UAtomEngineSubsystem ()
virtual CRIWARECORE_API const FAtomRuntime *	GetAtomRuntime () const final
virtual CRIWARECORE_API FAtomRuntimeHandle	GetAtomRuntimeHandle () const final
virtual CRIWARECORE_API FAtomRuntimeId	GetAtomRuntimeID () const final
virtual CRIWARECORE_API FAtomRuntime *	GetMutableAtomRuntime () final
virtual CRIWARECORE_API Atom::FMixerSourceManager *	GetMutableSourceManager () final
virtual CRIWARECORE_API const Atom::FMixerSourceManager *	GetSourceManager () const final
virtual void	Update ()
基底クラス IAtomActiveSoundUpdate に属する継承公開メンバ関数
virtual void	ApplyInteriorSettings (const FAtomActiveSound &ActiveSound, FAtomSoundParseParameters &ParseParams)
virtual void	GatherInteriorData (const FAtomActiveSound &ActiveSound, FAtomSoundParseParameters &ParseParams)
virtual void	NotifyActiveSoundCreated (FAtomActiveSound &ActiveSound)
virtual void	NotifyActiveSoundOwner (FAtomActiveSound &ActiveSound, const UObject *Owner)
virtual void	NotifyVirtualizedSoundCreated (FAtomActiveSound &ActiveSound)
virtual void	OnNotifyPendingDelete (const FAtomActiveSound &ActiveSound)
基底クラス IAtomSoundHandleSystem に属する継承公開メンバ関数
virtual	~IAtomSoundHandleSystem ()=default

限定公開メンバ関数
void	NotifySoundDeleting (const FAtomActiveSound &ActiveSound)

限定公開変数類
TMap< Atom::FSoundHandleID, FSoundHandle >	ActiveHandles
TMap< Atom::FSoundHandleID, IAtomSoundHandleOwner * >	Owners

その他の継承メンバ
基底クラス IAtomSoundHandleSystem に属する継承静的公開メンバ関数
static FName	GetModularFeatureName ()
static TArray< IAtomSoundHandleSystem * >	GetRegisteredInterfaces ()

詳解

An implementation of IAtomSoundHandleSystem using AtomEngineSubsystem

構築子と解体子

~UAtomSoundHandleSubsystem()

virtual UAtomSoundHandleSubsystem::~UAtomSoundHandleSubsystem ( )

overridevirtualdefault

関数詳解

CreateSoundHandle()

Atom::FSoundHandleID UAtomSoundHandleSubsystem::CreateSoundHandle ( UAtomSoundBase * Sound, IAtomSoundHandleOwner * Owner )

overridevirtual

This should create a sound and we should map it to an identifier. Then return the identifier to the owner to keep track of

引数

Sound
Owner

戻り値

IAtomSoundHandleSystemを再実装しています。

Deinitialize()

void UAtomSoundHandleSubsystem::Deinitialize ( )

overridevirtual

Initialize()

void UAtomSoundHandleSubsystem::Initialize ( FSubsystemCollectionBase & Collection )

overridevirtual

NotifyActiveSoundDeleting()

void UAtomSoundHandleSubsystem::NotifyActiveSoundDeleting ( const FAtomActiveSound & ActiveSound )

overridevirtual

Called when an active sound has just been removed from the audio engine, by being stopped or virtualized. In either case, the referenced ActiveSound object is about to be deleted; any pointers to it should be discarded.

NOTE! Called on the AudioThread

引数

ActiveSound

The active sound being deleted

IAtomActiveSoundUpdateを再実装しています。

NotifySoundDeleting()

void UAtomSoundHandleSubsystem::NotifySoundDeleting ( const FAtomActiveSound & ActiveSound )

protected

NotifyVirtualizedSoundDeleting()

void UAtomSoundHandleSubsystem::NotifyVirtualizedSoundDeleting ( const FAtomActiveSound & ActiveSound )

overridevirtual

Called when a virtualized sound has just been removed from the audio engine, by being stopped or re-triggered. In either case, the referenced ActiveSound object is about to be deleted; any pointers to it should be discarded.

NOTE! Called on the AudioThread

引数

ActiveSound

The active sound being removed

IAtomActiveSoundUpdateを再実装しています。

Play()

Atom::EResult UAtomSoundHandleSubsystem::Play ( Atom::FSoundHandleID ID )

overridevirtual

Play the sound that is represented by the sound handle with the following ID

引数

ID

IAtomSoundHandleSystemを再実装しています。

SetTransform()

void UAtomSoundHandleSubsystem::SetTransform ( Atom::FSoundHandleID ID, const FTransform & Transform )

overridevirtual

Set the transform on the sound that is represented by the sound handle with the following ID

引数

ID
Transform

IAtomSoundHandleSystemを再実装しています。

ShouldCreateSubsystem()

bool UAtomSoundHandleSubsystem::ShouldCreateSubsystem ( UObject * Outer ) const

overridevirtual

Stop()

void UAtomSoundHandleSubsystem::Stop ( Atom::FSoundHandleID ID )

overridevirtual

Stop the sound that is represented by the sound handle with the following ID

引数

ID

IAtomSoundHandleSystemを再実装しています。

メンバ詳解

ActiveHandles

TMap<Atom::FSoundHandleID, FSoundHandle> UAtomSoundHandleSubsystem::ActiveHandles

protected

Owners

TMap<Atom::FSoundHandleID, IAtomSoundHandleOwner*> UAtomSoundHandleSubsystem::Owners

protected

---

このクラス詳解は次のファイルから抽出されました:

• C:/git/Engine/Plugins/Runtime/CriWare/CriWare/Source/CriWareCore/Public/Atom/Gameplay/AtomSoundHandleSubsystem.h
• C:/git/Engine/Plugins/Runtime/CriWare/CriWare/Source/CriWareCore/Private/Atom/Gameplay/AtomSoundHandleSubsystem.cpp
