#include <AtomSoundClassEditorToolkit.h>

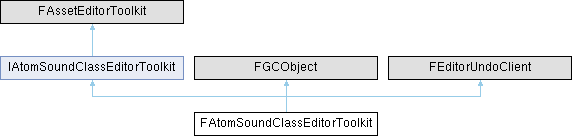

FAtomSoundClassEditorToolkit の継承関係図

公開メンバ関数
	FAtomSoundClassEditorToolkit ()
virtual	~FAtomSoundClassEditorToolkit ()
virtual void	AddReferencedObjects (FReferenceCollector &Collector) override
void	CreateSoundClass (class UEdGraphPin *FromPin, const FVector2D &Location, const FString &Name) override
virtual FText	GetBaseToolkitName () const override
virtual FString	GetReferencerName () const override
virtual FName	GetToolkitFName () const override
virtual FLinearColor	GetWorldCentricTabColorScale () const override
virtual FString	GetWorldCentricTabPrefix () const override
void	Initialize (UObject *ObjectToEdit, const EToolkitMode::Type Mode, const TSharedPtr< class IToolkitHost > &InitToolkitHost)
virtual void	PostRedo (bool bSuccess) override
virtual void	PostUndo (bool bSuccess) override
virtual void	RegisterTabSpawners (const TSharedRef< class FTabManager > &TabManager) override
	SLATE_BEGIN_ARGS (FAtomSoundClassEditorToolkit)
virtual void	UnregisterTabSpawners (const TSharedRef< class FTabManager > &TabManager) override

非公開メンバ関数
void	BindCommands ()
bool	CanExcuteToggleMute () const
bool	CanExcuteToggleSolo () const
bool	CanRemoveNodes () const
bool	CanSelectAllNodes () const
TSharedRef< SGraphEditor >	CreateGraphEditorWidget ()
void	CreateInternalWidgets ()
void	ExtendToolbar ()
bool	IsMuteToggled () const
bool	IsSoloToggled () const
FActionMenuContent	OnCreateGraphActionMenu (UEdGraph InGraph, const FVector2D &InNodePosition, const TArray< UEdGraphPin > &InDraggedPins, bool bAutoExpand, SGraphEditor::FActionMenuClosed InOnMenuClosed)
void	OnSelectedNodesChanged (const TSet< class UObject * > &NewSelection)
void	RedoGraphAction ()
void	RemoveSelectedNodes ()
void	SelectAllNodes ()
TSharedRef< SDockTab >	SpawnTab_GraphCanvas (const FSpawnTabArgs &Args)
TSharedRef< SDockTab >	SpawnTab_Properties (const FSpawnTabArgs &Args)
void	ToggleMute ()
void	ToggleSolo ()
void	UndoGraphAction ()

非公開変数類
TSharedPtr< class IDetailsView >	DetailsView
TSharedPtr< SGraphEditor >	GraphEditor
TSharedPtr< FUICommandList >	GraphEditorCommands
TObjectPtr< UAtomSoundClass >	SoundClass

静的非公開変数類
static const FName	GraphCanvasTabId
static const FName	PropertiesTabId

構築子と解体子

◆ FAtomSoundClassEditorToolkit()

FAtomSoundClassEditorToolkit::FAtomSoundClassEditorToolkit ( )

◆ ~FAtomSoundClassEditorToolkit()

FAtomSoundClassEditorToolkit::~FAtomSoundClassEditorToolkit ( )

virtual

関数詳解

◆ AddReferencedObjects()

void FAtomSoundClassEditorToolkit::AddReferencedObjects ( FReferenceCollector & Collector )

overridevirtual

FGCObject interface

◆ BindCommands()

void FAtomSoundClassEditorToolkit::BindCommands ( )

private

Bind to commands.

◆ CanExcuteToggleMute()

bool FAtomSoundClassEditorToolkit::CanExcuteToggleMute ( ) const

private

◆ CanExcuteToggleSolo()

bool FAtomSoundClassEditorToolkit::CanExcuteToggleSolo ( ) const

private

◆ CanRemoveNodes()

bool FAtomSoundClassEditorToolkit::CanRemoveNodes ( ) const

private

Whether we are able to remove the currently selected nodes

◆ CanSelectAllNodes()

bool FAtomSoundClassEditorToolkit::CanSelectAllNodes ( ) const

private

Whether we can select every node

◆ CreateGraphEditorWidget()

TSharedRef< SGraphEditor > FAtomSoundClassEditorToolkit::CreateGraphEditorWidget ( )

private

Create new graph editor widget

◆ CreateInternalWidgets()

void FAtomSoundClassEditorToolkit::CreateInternalWidgets ( )

private

Creates all internal widgets for the tabs to point at

◆ CreateSoundClass()

void FAtomSoundClassEditorToolkit::CreateSoundClass	(	class UEdGraphPin *	FromPin,
		const FVector2D &	Location,
		const FString &	Name )

overridevirtual

IAtomSoundClassEditorToolkit interface

IAtomSoundClassEditorToolkitを実装しています。

◆ ExtendToolbar()

void FAtomSoundClassEditorToolkit::ExtendToolbar ( )

private

Helper function to grow the toolbar and add custom buttons

◆ GetBaseToolkitName()

FText FAtomSoundClassEditorToolkit::GetBaseToolkitName ( ) const

overridevirtual

◆ GetReferencerName()

virtual FString FAtomSoundClassEditorToolkit::GetReferencerName ( ) const

inlineoverridevirtual

◆ GetToolkitFName()

FName FAtomSoundClassEditorToolkit::GetToolkitFName ( ) const

overridevirtual

IToolkit interface

◆ GetWorldCentricTabColorScale()

FLinearColor FAtomSoundClassEditorToolkit::GetWorldCentricTabColorScale ( ) const

overridevirtual

戻り値: Returns the color and opacity to use for the color that appears behind the tab text for this toolkit's tab in world-centric mode.

◆ GetWorldCentricTabPrefix()

FString FAtomSoundClassEditorToolkit::GetWorldCentricTabPrefix ( ) const

overridevirtual

◆ Initialize()

void FAtomSoundClassEditorToolkit::Initialize	(	UObject *	ObjectToEdit,
		const EToolkitMode::Type	Mode,
		const TSharedPtr< class IToolkitHost > &	InitToolkitHost )

Edits the specified Atom sound class object

引数

Mode	Asset editing mode for this editor (standalone or world-centric)
InitToolkitHost	When Mode is WorldCentric, this is the level editor instance to spawn this editor within
ObjectToEdit	The sound class to edit

◆ IsMuteToggled()

bool FAtomSoundClassEditorToolkit::IsMuteToggled ( ) const

private

◆ IsSoloToggled()

bool FAtomSoundClassEditorToolkit::IsSoloToggled ( ) const

private

◆ OnCreateGraphActionMenu()

FActionMenuContent FAtomSoundClassEditorToolkit::OnCreateGraphActionMenu	(	UEdGraph *	InGraph,
		const FVector2D &	InNodePosition,
		const TArray< UEdGraphPin * > &	InDraggedPins,
		bool	bAutoExpand,
		SGraphEditor::FActionMenuClosed	InOnMenuClosed )

private

Called to create context menu when right-clicking on graph

◆ OnSelectedNodesChanged()

void FAtomSoundClassEditorToolkit::OnSelectedNodesChanged ( const TSet< class UObject * > & NewSelection )

private

Called when the selection changes in the GraphEditor

◆ PostRedo()

virtual void FAtomSoundClassEditorToolkit::PostRedo ( bool bSuccess )

inlineoverridevirtual

◆ PostUndo()

void FAtomSoundClassEditorToolkit::PostUndo ( bool bSuccess )

overridevirtual

FEditorUndoClient Interface

◆ RedoGraphAction()

void FAtomSoundClassEditorToolkit::RedoGraphAction ( )

private

Called to redo the last undone action

◆ RegisterTabSpawners()

void FAtomSoundClassEditorToolkit::RegisterTabSpawners ( const TSharedRef< class FTabManager > & TabManager )

overridevirtual

◆ RemoveSelectedNodes()

void FAtomSoundClassEditorToolkit::RemoveSelectedNodes ( )

private

Remove the currently selected nodes from editor view

◆ SelectAllNodes()

void FAtomSoundClassEditorToolkit::SelectAllNodes ( )

private

Select every node in the graph

◆ SLATE_BEGIN_ARGS()

FAtomSoundClassEditorToolkit::SLATE_BEGIN_ARGS ( FAtomSoundClassEditorToolkit )

inline

◆ SpawnTab_GraphCanvas()

TSharedRef< SDockTab > FAtomSoundClassEditorToolkit::SpawnTab_GraphCanvas ( const FSpawnTabArgs & Args )

private

◆ SpawnTab_Properties()

TSharedRef< SDockTab > FAtomSoundClassEditorToolkit::SpawnTab_Properties ( const FSpawnTabArgs & Args )

private

◆ ToggleMute()

void FAtomSoundClassEditorToolkit::ToggleMute ( )

private

Toggle mute (Muting means this will be explicitly silienced)

◆ ToggleSolo()

void FAtomSoundClassEditorToolkit::ToggleSolo ( )

private

Toggle solo (Soloing means we just hear this)

◆ UndoGraphAction()

void FAtomSoundClassEditorToolkit::UndoGraphAction ( )

private

Called to undo the last action

◆ UnregisterTabSpawners()

void FAtomSoundClassEditorToolkit::UnregisterTabSpawners ( const TSharedRef< class FTabManager > & TabManager )

overridevirtual

メンバ詳解

◆ DetailsView

TSharedPtr<class IDetailsView> FAtomSoundClassEditorToolkit::DetailsView

private

Property View

◆ GraphCanvasTabId

const FName FAtomSoundClassEditorToolkit::GraphCanvasTabId

staticprivate

The tab ids for all the tabs used

◆ GraphEditor

TSharedPtr<SGraphEditor> FAtomSoundClassEditorToolkit::GraphEditor

private

Graph Editor

◆ GraphEditorCommands

TSharedPtr<FUICommandList> FAtomSoundClassEditorToolkit::GraphEditorCommands

private

Command list for this editor

◆ PropertiesTabId

const FName FAtomSoundClassEditorToolkit::PropertiesTabId

staticprivate

◆ SoundClass

TObjectPtr<UAtomSoundClass> FAtomSoundClassEditorToolkit::SoundClass

private

The AtomSoundClass asset being inspected

このクラス詳解は次のファイルから抽出されました:

C:/git/Engine/Plugins/Runtime/CriWare/CriWare/Source/CriWareCoreEditor/Private/Toolkits/AtomSoundClassEditorToolkit.h
C:/git/Engine/Plugins/Runtime/CriWare/CriWare/Source/CriWareCoreEditor/Private/Toolkits/AtomSoundClassEditorToolkit.cpp
